Holybro PM07 Power Module (14S)

$ 39.59

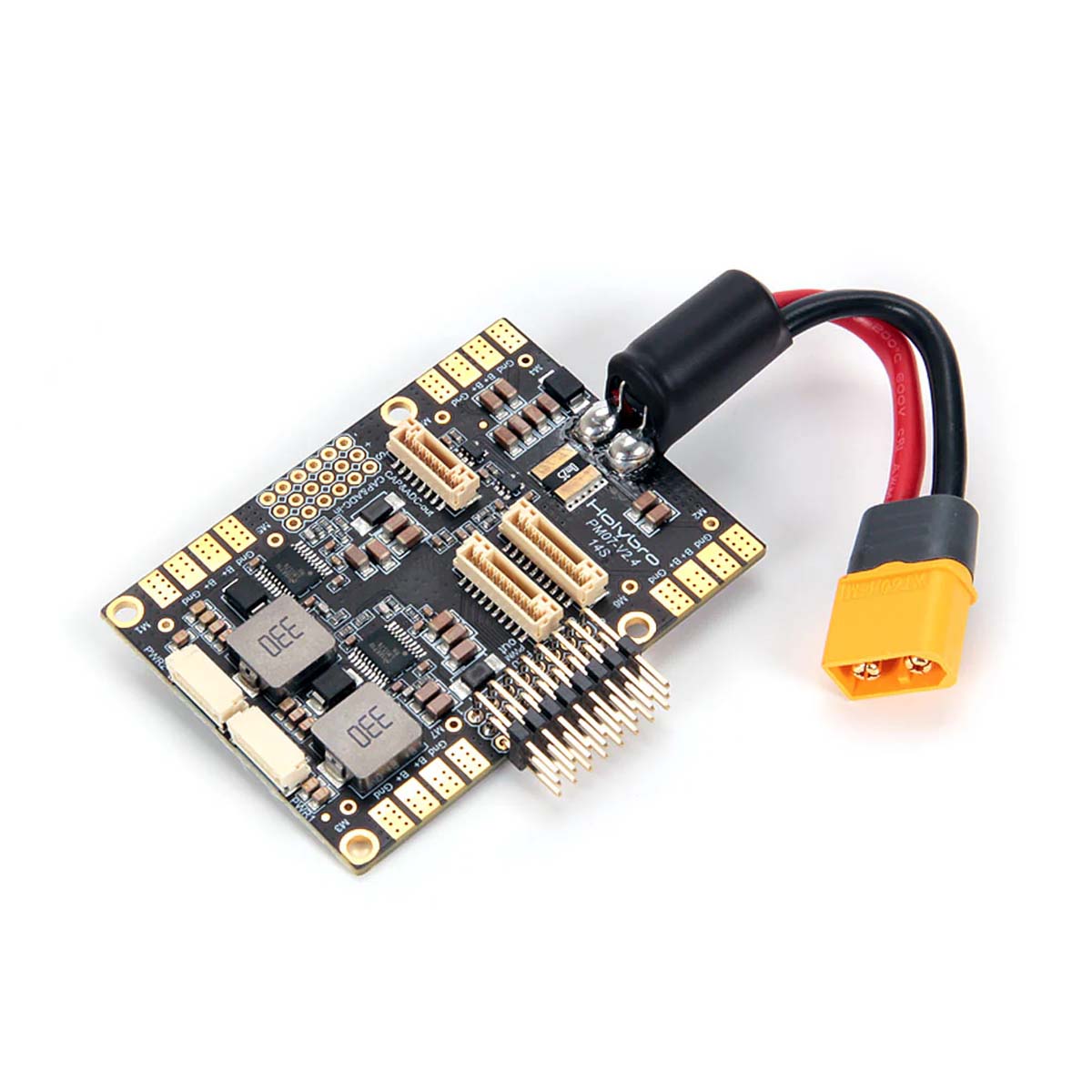

Holybro PM07 Power Module (14S) Description: Holybro PM07 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated esc power & signal distribution for up to 8 ESCs. PM07 has two 5.2V power output port that can provide redundant power to the flight controller, with independent circuits, BEC IC and circuitry. It is also great for flight controller that do not have built-in servo header pins like the Pixhawk 6C & Pixhawk 4. It comes with pre-soldered wires, capacitor, and XT60 connector. Follow us World Drone Market on YouTube to view more videos about the Holybro Product. Specifications: Input voltage: 2S-14S PCB Cont. Current Rating: 90A PCB Burst Current Rating: 140A (<60 Sec) Output: DC 5.2V & 3A Max Voltage Divider: 18.182 Amperes per Volt: 36.364 Please Note:  The PM07 12S version has been discontinued and replaced by the 14S version. The XT60 plug and 12AWG wire pre-soldered on the board are rated for 30A continuous and 60A burst (< 60 seconds). If higher currents are used, the plug type and wire size should be changed accordingly. This PM07 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D). Mechanical Specification: Dimensions:68*50*10 mm Mounting Holes:45*45mm Weight: 43.8g
